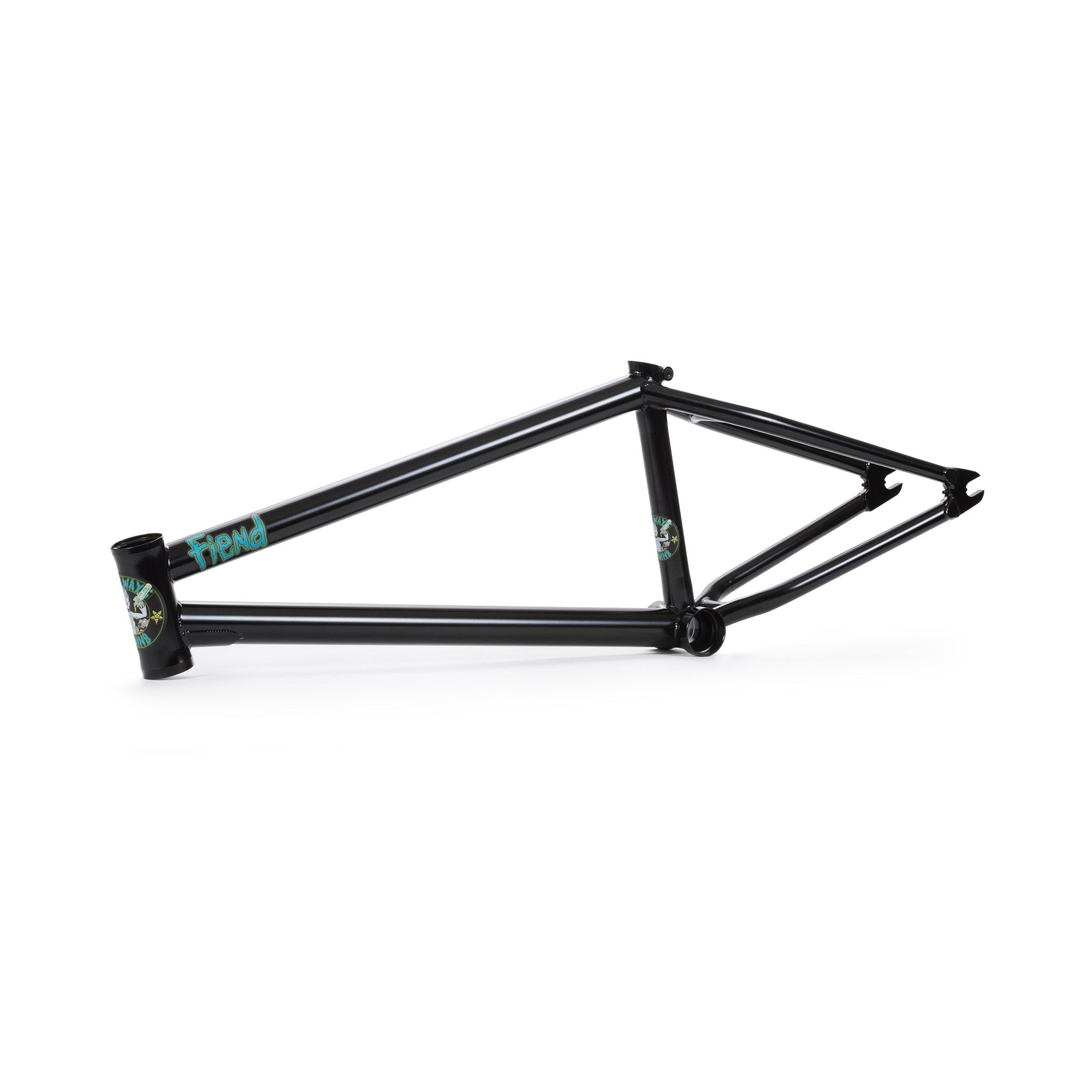

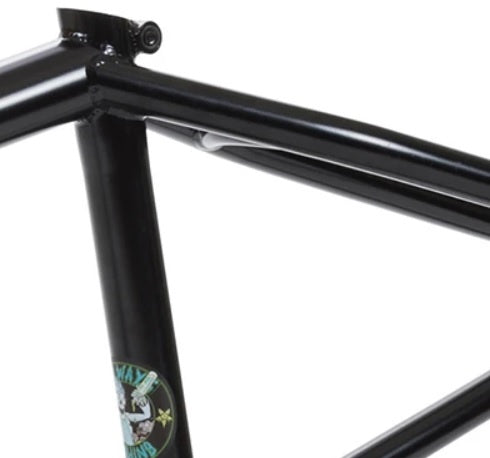

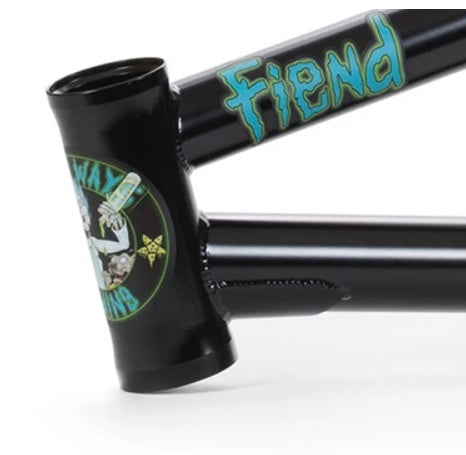

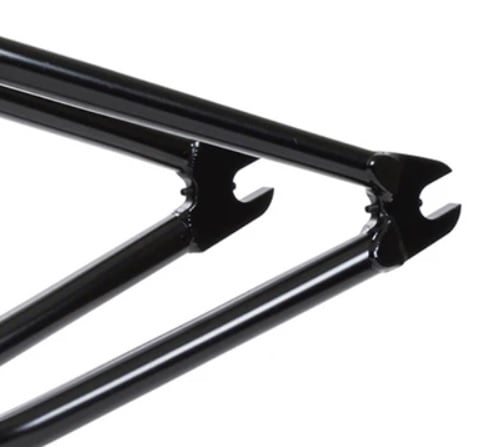

Designed by Garrett Reynolds.  Constructed from heat-treated 4130 chromoly with an internal gusset in the top tube and an external gusset on the down tube. The frame’s tubing is double butted with a heat-treated Mid BB shell and head tube, externally butted seat tube with integrated post clamp and 8mm thick investment cast dropouts with integrated chain tensioners.

Geometry:
20.75″ top tube length
HT 75.5
ST 71
CS 13″
9″ seat tube height (bottom bracket to top tube, center to center)
BB height: 11.625″
Weight: 5lbs.

Brakeless
