DESCRIPTION

A staple in the lineup as a progressive off-road bike to take on your next adventure. An all-around bike for city or trails, to discover your favourite way to ride.

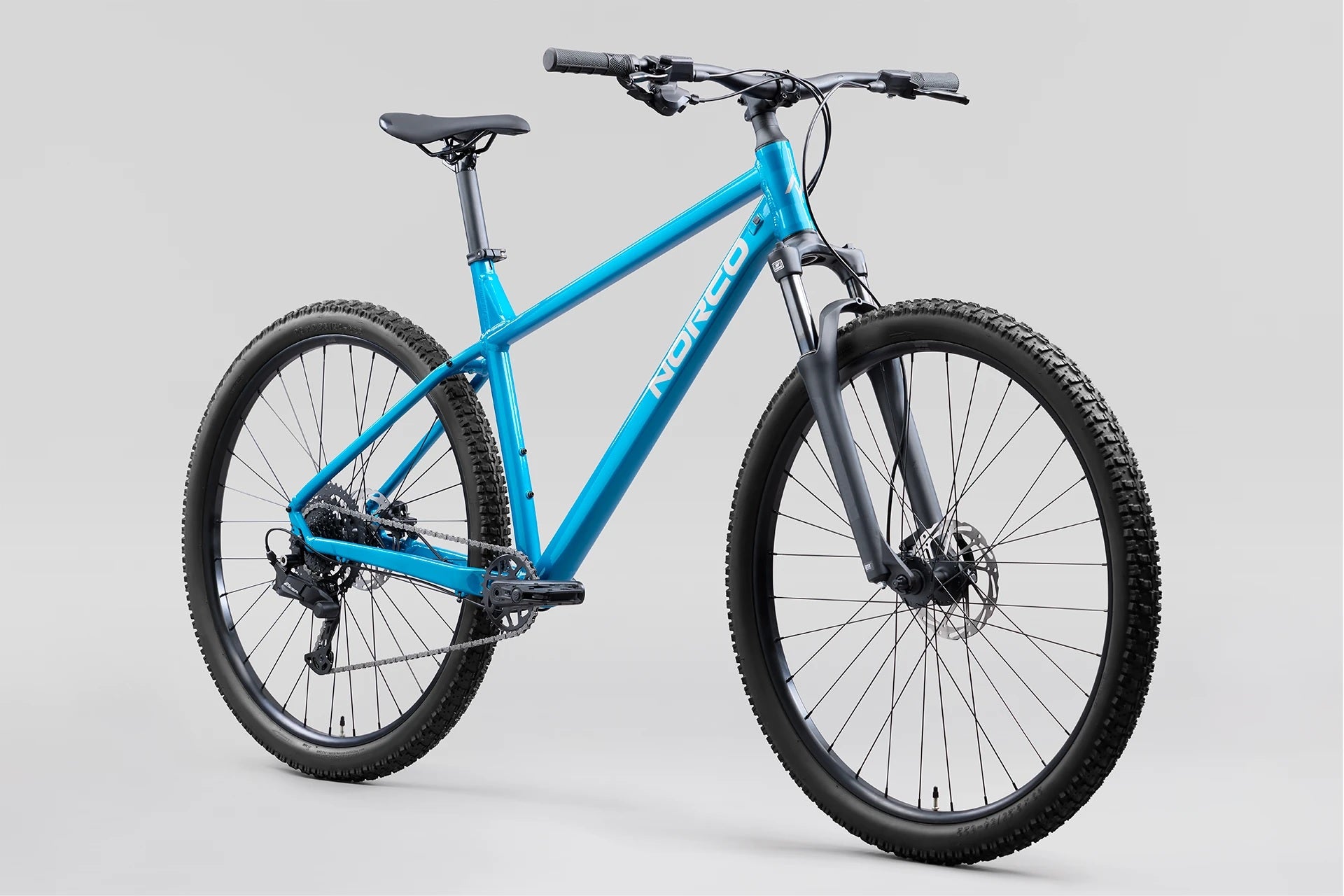

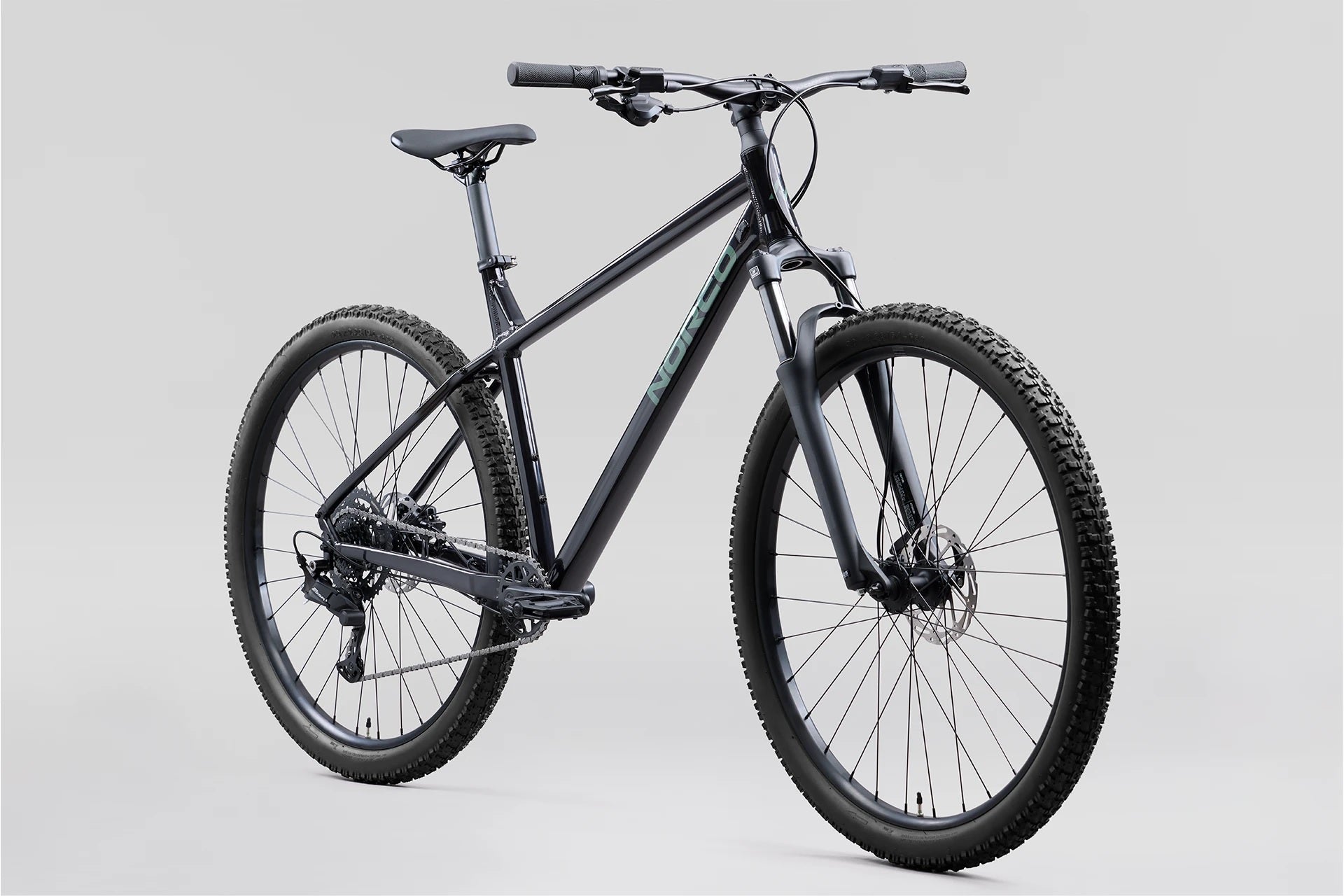

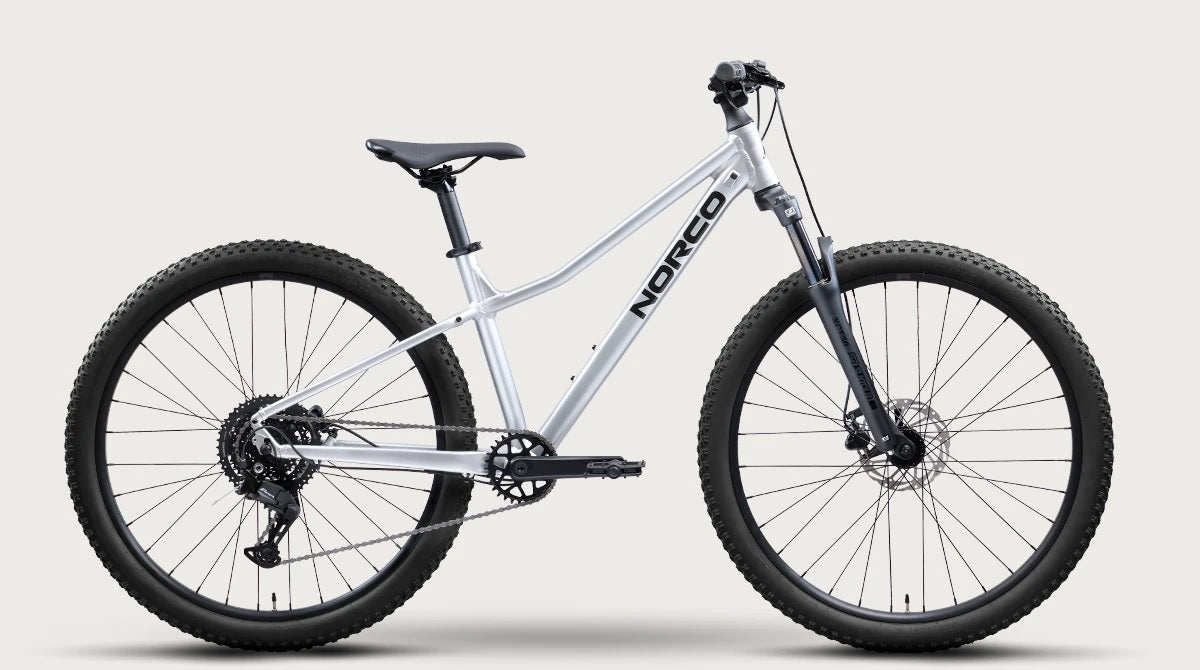

The Storm 3 opens up the world of off-road adventure

With a lightweight aluminum frame with custom tube shapes, a full breadth of frame sizes, rack and fender mounts, and dual water bottle mounts - it’s ready to go anywhere, with anyone.

Progressive design for nimble, confident trail performance.
The perfect amount of suspension for comfort and control on the trail.
Mechanical systems protected from the elements.
Stop on a dime.
Size-specific wheels optimize the ride.
Versatile frame features to take you anywhere.

Frame	Aluminum, Tig Welding, 10x135mm QR, Tapered HT
Fork	SR Suntour XCT30 Coil, 100mm, 46mm offset, QR

Rear Derailleur	Shimano Essa RD-U2000, GS, 8sp
Crankset	Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket	Cartridge, ST 73mm, 113mm axle length
Cassette	Shimano ESSA CS-HG300-8, 11-45T, 8sp
Chain	KMC Z8
Shifter Casing	Shimano Altus SL-M315, 8sp

Front Brake	Shimano BR-MT200, Resin pads
Front Brake Rotor	Shimano SM-RT26, 160mm, 6-Bolt
Rear Brake	Shimano BR-MT200, Resin pads
Rear Brake Rotor	Shimano SM-RT26, 160mm, 6-Bolt
Brake Levers	Shimano BL-MT200

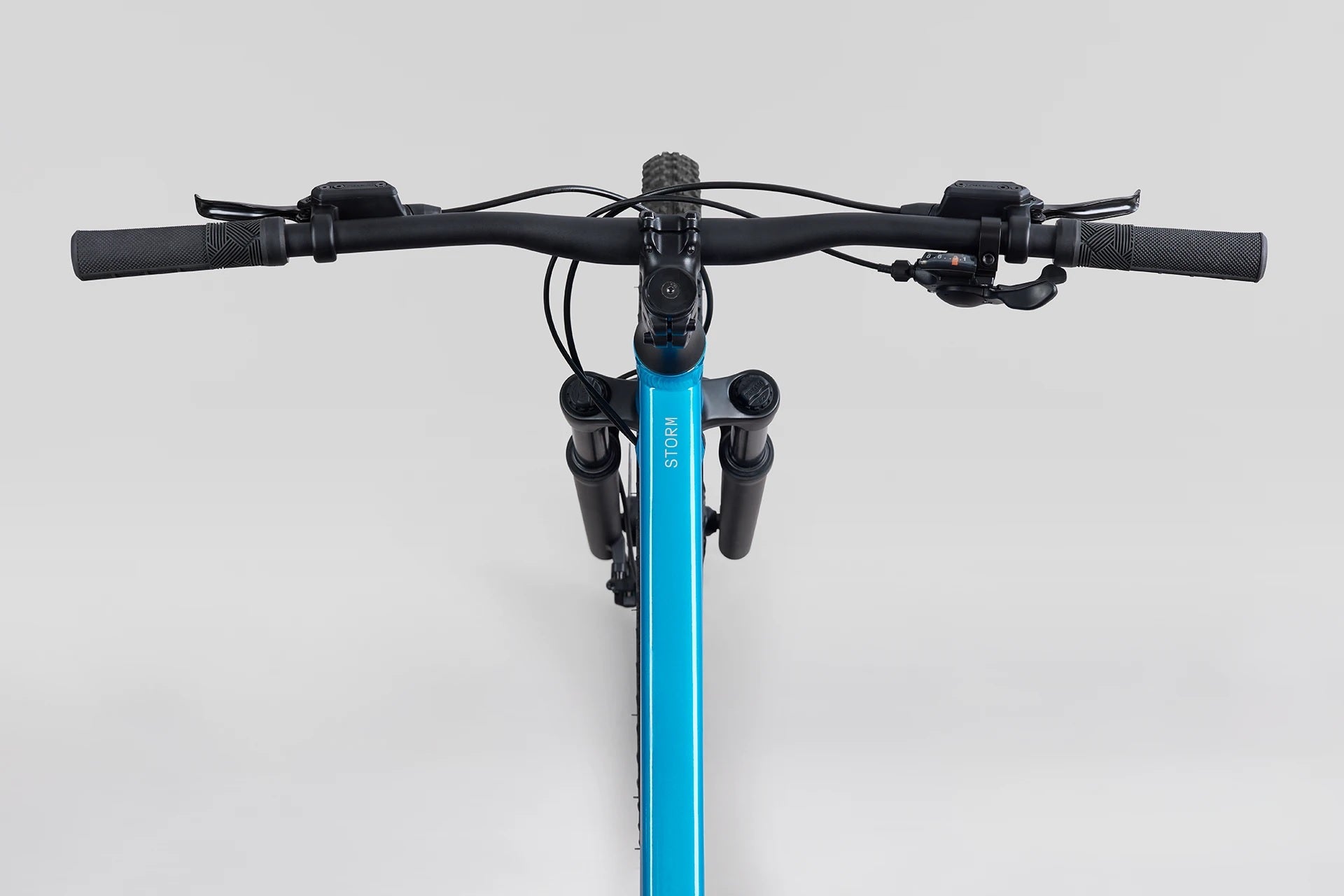

Handlebar	Norco Aluminum, 740mm (S-M) 760mm (L-XXL), 20mm Rise
Stem	Alloy 40mm Length, 31.8mm Clamp
Seatpost	Alloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length
Headset	Zero Stack, 1-1/8" Steer, ZS44/28.6 \| ZS44/30 1 1/8"
Saddle	Norco XC, Steel Rail
Grips	Norco lock-On, 130mm length
Pedals	Nylon Flat Pedal
Seatpost Clamp	Norco Alloy QR, 34.9mm ID

Front Hub	Formula DC-1420 , 9x100mm QR, 32h, 6-bolt
Rear Hub	Formula DC-27A,10x135mm QR, HG, 32h, 6-bolt
Rims	Alloy XD-155, 32H
Front Tire	CY, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
Rear Tire	CY, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
